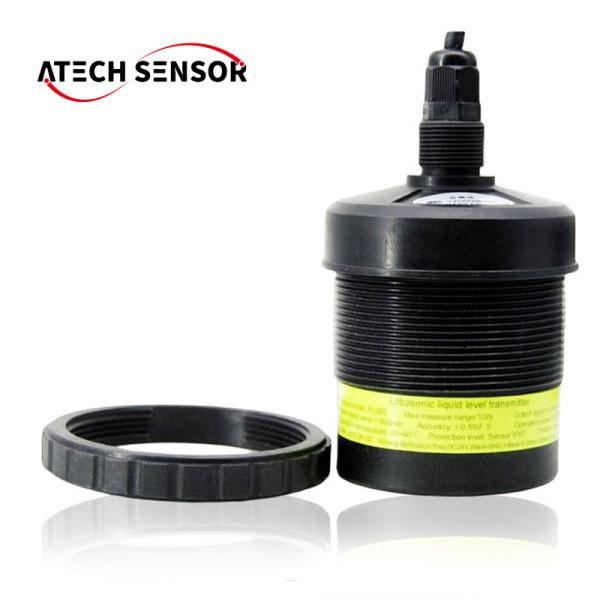

Atech 420ma PL320 Waterproof Ultrasonic Distance Sensor
| Ultrasonic sensor | Low power-sensor | Middle power-sensor | Large power-sensor |
| The Max. range | ≤5m | ≤7m | ≤10m | ≤10m | ≤12m | ≤15m |
| Blind area | Standard: 300mm | 350mm | 500mm | 500mm | 600mm | 800mm |
| OEM:200mm |
| Power supply | Standard: DC24V | DC24V | DC24V | DC24V | DC24V | DC24V |
| OEM:DC12V, AC220V | / | OEM:DC12V, AC220V | / |
| Beam angle | 15° | 12° | 9° |
| Operating frequency | 38K±10Khz | 55K±10Khz | 40K±5Khz |
Accuracy | Standard: ±0.5%F S or ±5mm; (at 25℃, Absolutely flat target under the condition of standard) |
OEM: FS≤1m, accuracy can be ±1mm FS≤2m, accuracy can be ±3mm FS≤15m, accuracy can be ±0.25% FS |
Output signal | Standard: 4-20mA (3 wires) |
OEM: 4-20mA(4 wires), 0-20mA, 0-5v, 1-5v 0-10v, 1-10v (both signal can not be customized DC12v) RS485(MCU protocol as default, Address=01, bps=9600) 4-20mA+RS485; 1-5V+RS485, 1~2NPN 1-10V, 0-10V, 4-20mA(two wire) - Power supply 24VDC can not be OEM |
Measuring mode | Standard: Distance mode, the distance of ultrasonic sensor surface
to measuring target surface |
OEM: Level mode; the distance of level surface to level bottom(the
bottom of tank) NOTE: Ensuring the distance of sensor surface to the level bottom
is the actual mounting height, otherwise might be have installation error. |
| Working temp. | Standard: 0~50℃ |
| OEM: Negative Temp. -10℃,-20℃,-30℃; Positive Temp. 60℃,70℃,80℃ |
| Wiring Mode | Quick connect type terminal(can be customized cable outlet about
1m) |
| Installation | Screw type or sifter clamping ; screw size: M68*2.0mm |
| Protection class | IP65, OEM of IP66, IP67, IP68 |
Working environment | Normal pressure, non-explosion-proof; non-corrosive environment |
OEM: Anti-explosion symbol Exia II AT3 (DC12 V,range≤10m ) The material sensor housing: PTFE for large power sensor Strong in corrosion resistance |
NOTES | 1.When level range ≥15m, equip with other type ultrasonic sensors 2.Users no need to set the address, bps, installation height, so
please verify to factory before ordering 3.For RS485-PC product, users can adjust the parameter by
software(the default software) The max measure range depends on the smooth level surface, so
please confirm the real |
Company ultrasonic distance sensor, the use of ultrasonic echo
ranging principle, the use of accurate time difference measurement
technology to detect the distance between the sensor and the
target, the factory developed using small-angle, small blind
ultrasonic sensor with accurate measurement, non-contact,
Waterproof, anti-corrosion, low cost and other advantages, should
be in the liquid level, level detection, unique liquid level, level
detection, to ensure that there is a bubble in the liquid or large
shaking, not easy to detect echo Have a stable output.
Feature
● Non-contact measurement
● Convenient installation
● High stability and long-term reliability
● Waterproof, dustproof, anti-corrosion
● Intrinsic safety, explosive-proof
Applications
● Depth well level measurement
● Industrial tanks
● Detection of tanker oil level
● Water treatment
● Hydraulic monitoring
● High pool level
Notes for selection range of ultrasonic level sensor:
For example, in a tank for measuring the level of hydrochloric
acid, due to the strong volatility of the medium, the air in the
tank may suspend a large amount of fine liquid particles, causing
some sound waves of the ultrasonic level gauge to scatter. For this
phenomenon, when the liquid drops to a lower position, the
ultrasonic level gauge may not receive echo. Therefore, it is
recommended that the user increase the measurement distance by
30-50% when selecting the range. For example, for a 6-meter-high
tank, it is best to select a 10-meter Uson-11 ultrasonic liquid
level meter for measurement.
