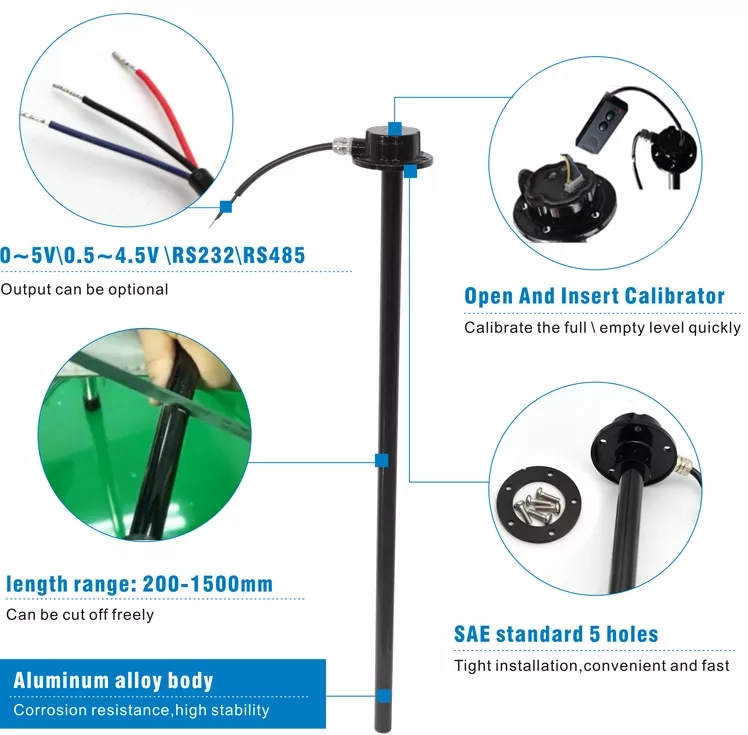

Atech PL332 700mm High Resolution Capacitive Diesel Fuel Tank Level Probe
PL332 is Magnetic water tank level sensors can be used for water dispenser, water heater, solar energy, air conditioning, humidifier, bathroom equipment, sales machine, oil tank, water tower, chemical liquid level control, kitchen equipment,water heater and other water heating equipment, such as dry burning water level sensor.lt is widely used in automobile,industrial equipment, agricultural equipment and household appliances.
| item | value |
| Model Number | PL332 |
| Type | ABSOLUTE PRESSURE SENSOR |
| Place of Origin | China |
| Usage | Fuel lever monitoring |
| Output | 0-5v |
| Description | Fuel lever sensor |
| Product name | gps fuel sensor |
| Length | Cuttable to fit |
| Maximum power | 0.4W/12VDC |
| 15CM cable tie | Used to fix the extention wire |
| Working humidity | 5%~90%. |
| Explore a heat resistance: | -100~ 150 °C |
| Measuring accuracy | 0.1 |
| Inbreaking Protection | IP65 |
| MOQ | 3 Sets |
Features
Effectively improve the comprehensive function of the tank system, and greatly reduces the cost of fuel tank system,also reducethe potential failures in construction, such as oil leakage, box deformation, explosion and other security risks.
● Suitable for truck, generators/genset, bus and marine field
● Widely used in fuel, water, kerosene and chemical tanks
● OEM quality, widely used on automotive and marine OEM
● Reed switch, Continuous and steady output signal
● Simple and strong structure, Advanced corrosion resistance
● Long using life, anti-vibration,anti-explosion
● High quality fuel and water level sensor
● Economical level sensing solution, long service lifespan
● Without limitation of environment,length can be customized
Specifications
• Material: SUS316 or SUS304 stainless steel
• Length range: 100 to 3,000mm for standard (can be customized)
• Assembly: BSP1 1/4-inch thread twist-in, or NPT thread twist-in
• Various types of flanges are available for fitting fuel tank if necessary
• Mounting: 38 x 2.6mm O-ring/43 x 3.5mm O-ring
• Connector: Brand Delphi,Tyco or others is available according to customer’s Requirement
• Supply voltages: 10V to 32V
• Rated current for alarm switch: 500mA
• Output signal: 0-190ohm, 240-33ohm, 4-20mA, 0-20mA, 0-5V, 0.5-4.5V or customized
• Resolution range: 10mm to 40mm
• Operating temperatures: - 40 to 85°C
• Protection rank: IP67
• Option: high/low alarm
Description
water/oil tank liquid level sensor with lots of function, such as liquid level control, heating, oil suction, oil return, temperaturealarm, fuel filter, balance box for air pressure and safety. Mainly used for oil/water/sewage continuous indication and alarm.
OEM and ODM are welcome!
We have the 0-190ohm/240-33ohm , the length of sensor can customize, if you need other signal and length, if you need wholesale or dropping shipping, welcome to contact to us.we support all wholesale and drop shipping.
