PL320 High Stability Digital Ultrasonic Water Tank And Fuel Tank
Level Sensor 4-20mA
| Ultrasonic sensor | Low power-sensor | Middle power-sensor | Large power-sensor |
| The Max. range | ≤5m | ≤7m | ≤10m | ≤10m | ≤12m | ≤15m |
| Blind area | Standard: 300mm | 350mm | 500mm | 500mm | 600mm | 800mm |
| OEM:200mm |
| Power supply | Standard: DC24V | DC24V | DC24V | DC24V | DC24V | DC24V |
| OEM:DC12V, AC220V | / | OEM:DC12V, AC220V | / |
| Beam angle | 15° | 12° | 9° |
| Operating frequency | 38K±10Khz | 55K±10Khz | 40K±5Khz |
Accuracy | Standard: ±0.5%F S or ±5mm; (at 25℃, Absolutely flat target under the condition of standard) |
OEM: FS≤1m, accuracy can be ±1mm FS≤2m, accuracy can be ±3mm FS≤15m, accuracy can be ±0.25% FS |
Output signal | Standard: 4-20mA (3 wires) |
OEM: 4-20mA(4 wires), 0-20mA, 0-5v, 1-5v 0-10v, 1-10v (both signal can not be customized DC12v) RS485(MCU protocol as default, Address=01, bps=9600) 4-20mA+RS485; 1-5V+RS485, 1~2NPN 1-10V, 0-10V, 4-20mA(two wire) - Power supply 24VDC can not be OEM |
Measuring mode | Standard: Distance mode, the distance of ultrasonic sensor surface
to measuring target surface |
OEM: Level mode; the distance of level surface to level bottom(the
bottom of tank) NOTE: Ensuring the distance of sensor surface to the level bottom
is the actual mounting height, otherwise might be have installation error. |
| Working temp | Standard: 0~50℃ |
| OEM: Negative Temp. -10℃,-20℃,-30℃; Positive Temp. 60℃,70℃,80℃ |
| Wiring Mode | Quick connect type terminal(can be customized cable outlet about
1m) |
| Installation | Screw type or sifter clamping ; screw size: M68*2.0mm |
| Protection class | IP65, OEM of IP66, IP67, IP68 |
Working environment | Normal pressure, non-explosion-proof; non-corrosive environment |
OEM: Anti-explosion symbol Exia II AT3 (DC12 V,range≤10m ) The material sensor housing: PTFE for large power sensor Strong in corrosion resistance |
NOTES | 1.When level range ≥15m, equip with other type ultrasonic sensors 2.Users no need to set the address, bps, installation height, so
please verify to factory before ordering 3.For RS485-PC product, users can adjust the parameter by
software(the default software) The max measure range depends on the smooth level surface, so
please confirm the real |

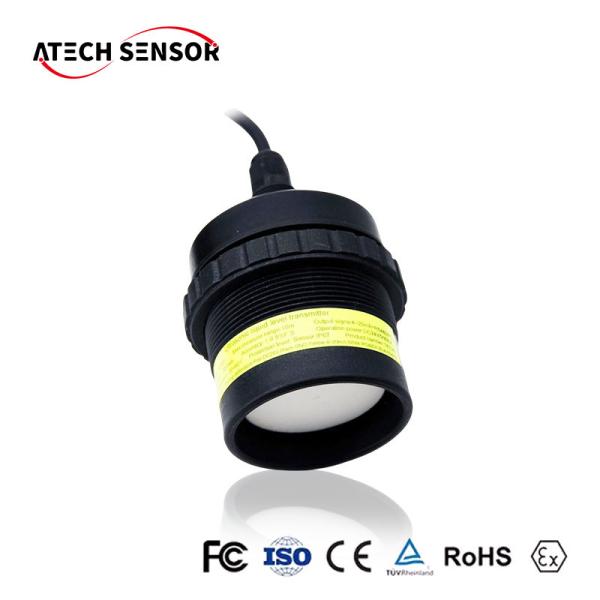

PL320 3meters ultra sonic water level sensor 4-20mA combines
ultrasonic sensors, temperature sensors, ultrasonic servo circuit,
transmission circuit and uses SMD components and ASIC which is developed
together with the United States partner.
All these features realize a concise and smart level transmitter. All gold-plated
circuit boards, internal electromagnetic shielding and software digital filter are tested for (industrial) 48 hour under high and
low temperature aging. It promises higher and long-term reliability. Shell is made of solid texture and good NLEPF acoustic
characteristics of synthetic material. The body is shape sophisticated aesthetics, waterproof, dustproof, and can adapt to
the most of working conditions on site.A very quick and easy installation, maintenance can be realized.
Features
● Range of up to 60 meters
● Level or material measurement
● Level or material measurement
● Response speed is adjustable
● Easy Installation
Applications
● River water level measurement
● Lake water level measurement
● Shallow water level measurement
● Hydrological monitoring
● Environmental protection
Notes for selection range of ultrasonic level sensor:
For example, in a tank for measuring hydrochloric acid level, due
to the strong volatility of the medium, the air in the tank may
suspend a large number of fine liquid particles, which will scatter
part of the sound waves of the ultrasonic level gauge. For this
phenomenon, when the liquid drops to a lower level, the ultrasonic
liquid level gauge may not receive echoes. Therefore, it is
recommended that the user increase the measurement distance by
30-50% when selecting the range. For example, for a 6-meter-high
tank, it is best to use a 10-meter Uson-11 ultrasonic liquid level
gauge for measurement.
