Best Selling 26g Non Contact Radar Guided Radar Liquid Tank Level Gauge Sensor Transmitter

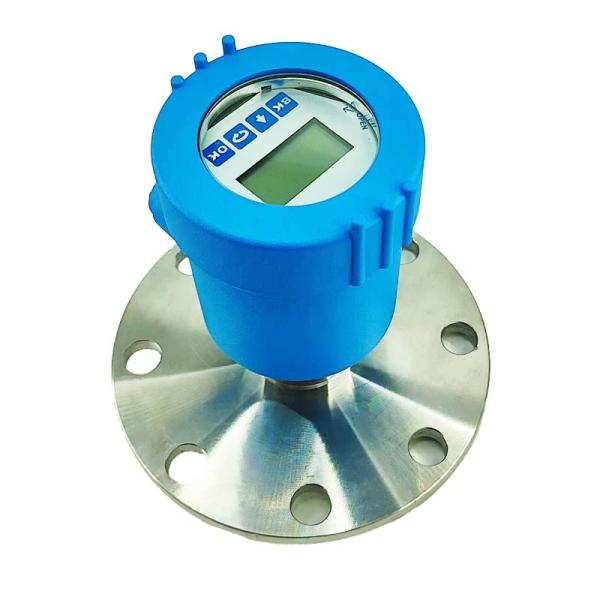

The series is PL806 radar operating at 26 GHz, which has a maximum measuring range of 120m and a minimum blind zone of 8cm. It supports 4-wire and 2-wire applications. Higher operating frequency and shorter wavelength make it ideal for solid applications, including those with extreme dust and high temperature to + 200℃. The radar consists of an electronic circuit coupled to a lens antenna and flange for quick and easy positioning.
Radar level sensors are mounted above the liquid level on the top of the tank, or on a platform that spans the top of the open tank.
Speifications
| |
| Housing: | Steel 316L | |
| Seal ring between housing and housing cover | Silicone |
| view Point window on housing | Polycarbonate |
| Ground terminal | Stainless Steel |
| Power: | Two-wirc | standard version | (16~36) VDC |
| Intrinsic safe version | (21.6~26.4) VDC |
| Power consumption | max.22.5mA |
| Ripple allowed | |
| —＜100Hz | Uss＜1V |
| —(＜100~＜100K)Hz | Uss＜10mV |
| Four-wire/two | intrinsic safe+explosion proof | (21.6一26.4) VDC, |
| -chamber | Power consumption | max.1VA,1W |
| Cable: | Cable entry/plug | one cable entry of M20x1.5,one blind of M20x1.5 |
| Spring Connection terminal | Application for cables with cross section of2.5m㎡ |
| Output: | Output signal | 4~-20mA/HART |
| Resolution | 1.6 μa |
| Fault signal | Constant current output:20.5mA; 22mA; 3.9mA |
| Integration time | 0~50 seconds,adjustable |
| Blind spot | end of antenna |
| Max. measurement distance | 10m |
| Microwave frequency | 26GHz |
| Measurement interval | about 1 sec.(depend on parameter settings) |
| Adjustment time | about 1 sec.(depend on parameter settings) |
| Resolution on display | 1mm |
| Accuracy | see the diagram below |
| Temperature for storage/transport | (-40～80)℃ |
| Process tempcrature (probe) | (-40～250)℃ |
| Relative humidity | ＜95% |
| Pressure | Max.4MPa |
| Vibration proof | mechanical vibration l0m/s3 ,(10~～150)Hz |
● Corrosiveness
Our instruments can protect measuring instruments under corrosive conditions by adopting sealing technology and anti-corrosion materials, and can be used in chemical industry plastic industry and other industries.
● High Temperature
We are not afraid of high temperature and direct sunlight or extremely high medium and ambient temperature, such as blast furnace used in mining and petrochemical industry, which can be perfectly adapted.
● Humidity
Our instrument can still maintain reliable, accurate and error-free measurement in the environment with serious dirt and tiny dust particles, without any foreign matter and medium adhering or depositing. It can be used in mining metallurgy, petroleum and other industries.
WHY CHOOSE US ??
We have an independent research and development base and production workshop, using imported research and development experimental equipment, equipped with a professional research and development team, mastering core skills and advanced technology, first-class equipment and teams enable us to continuously develop excellent products. For 20 years, our company has focused on level measurement. The accumulation of history has enabled us to have a high-precision (±1mm) fully shielded production line, which has laid a solid foundation for the production of high-quality products. For custom instruments, it only takes 3-7 days from order receipt to delivery. In addition, we are fully dedicated to customized products (OEM). Relying on our fast new product research and development capabilities, short delivery time, and efficient service methods, our company has occupied 50% of the sales market share at home and abroad, with a very high market share, and our products are spread all over the country and the world. We provide high-quality products and professional and perfect after-sales services to customers all over the world at reasonable prices. Customers can contact us at any time after purchasing the product. It is our responsibility to patiently explain the professional knowledge of radar level gauge to customers!
