OEM Pressure Sensor PT218 Storage Type Pressure Sensor For Oil
Industry
Introduction
PT216 Storage type pressure gauge is a pressure sensor can
measuring pressure and temperature same time with data storage
instrument. 1200 million the data collection and storage, use the
built-in memory and external memory card design, storage and backup
double at the same time; Read data, USB communication and
supporting software, software of data collection, analysis, report
forms and curve display to give you an efficient data processing;
Six figures very eye-catching; this series pressure sensor is the
experiment data acquisition essentials.
Main features
Ⅰ, 11 kinds of unit display; Customizable.
Ⅱ, Acquisition speed (0.025 ~ 7200 )s/time; Free setting
Ⅲ, Storage and backup controlling double insurance; Safe and
reliable
Ⅳ, More than 1200 million data storage, storage density can be
divided into 10 section programming
Ⅴ, Buttons for magnetic induction pen design; anti-interference,
not easy to damage
Ⅵ,Intuitive pressure bar charts; Intuitive and easy to understand
Ⅶ, Signal isolation technology; Electromagnetic resistance, power
frequency interference technology; To ensure that the data is
correct.
Ⅷ, Zero since the stabilizing technology; Automatic temperature
compensation technology; Stable and reliable
Applications
1.Oil and gas pressure data collection and storage, analysis.
Urban water network, heat supply network and gas network pressure
data 2.collection and storage, and analysis
3.Laboratory tests and analysis
4.Meet the demand of industry measuring instrument testing
standards
Precision reached a magnitude of 0.05
5.Meet the demand of high precision pressure acquisition
6.Meet the demand of industry measuring instrument testing
standards
Technical parameters
1. The measuring range:
Gage pressure: (-100kpa~0~1kpa~260 mpa )(optional)
Differential pressure: (0~500pa~3.5MPa)(optional)
Absolute pressure: (0~10 kpa~50 mpa) (optional)
2. The level of accuracy:.0.05% FS 0.1% FS 0.2%FS.
3. The acquisition speed: 1~30 seconds/time
4. The display mode: 6 figure dynamic display, the percentage bar
charts
5. Storage medium: built-in memory, and external SD card, (mini SD
card)
6. The built-in power supply: 3.6 Vdc high-energy industrial
lithium battery (renewable)
7. Overload pressure: 1.5 ~ 3 times of range, depending on the
measurement range
8. Medium temperature: - 40 ℃ ~ 180 ℃
9. The working environment: - 30 ℃ ~ 70 ℃, humidity < 90%
10. Explosion-proof marks: ExiaIICT6
11. Process interface: M20 x 1.5 (male)customized or according to
user requirements
12. The configuration Software: Software storage table special
Software
The battery working time
| Acquisition time ( seconds) | Working time (year) |
| 1 | 3 years |
| 2 | 4 years |
| 5 | 4.8 years |
| 10 | 5.3 years |
| 300 | 6 years |
Test conditions:
1. Open the SD card storage, storage interval as 1 second;
2. Internal storage space for 1 second.
Note: the battery life is affected by instrument working
environment, such as temperature, humidity, etc.
Use one-off high-energy lithium batteries, The model is AtechB2161.
Nominal capacity (with 3mA~2A) : 19000 mAh
Rated voltage: 3.6 V
Battery temperature: 55 ℃ ~ 85 ℃
Vibration resistance: conform to the severe degree of vibration
level V.S. 3.
A set of products include: measuring probe, store display
instrument, two SD card, a set of software. A piece of the battery

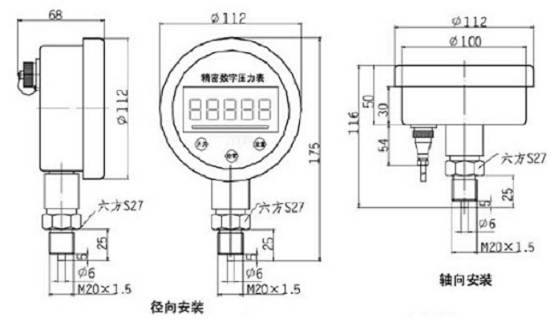

Dimensions of pressure sensor
Software interface
Storage display section
Placed in memory SD card at storage. need to read data as long as
change SD card, card reader on the computer with a special software
can read, software can also analyze the data, and interpretation.
Data can also be imported into Excel form for recording.
