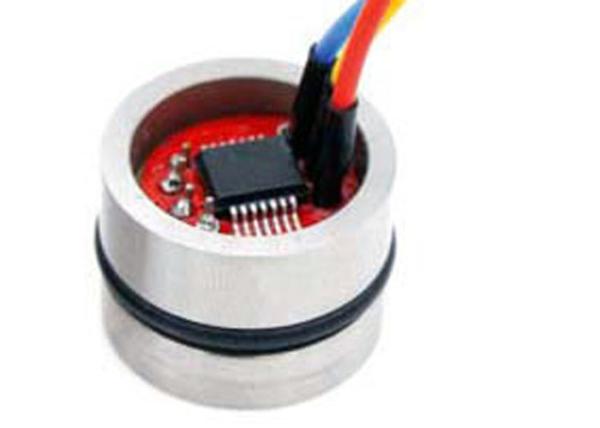

Factory 5v power supply natural gas liquid miniature differential
water i2c pressure sensor
Feature
It's an advance pressure transducer than traditional mechanical
pressure transducer.
2. ±2%FS small output error, including nonlinear, hysteresis error
and repeatability, full temperature range.
3. Light weight and small size, convenient to install and operate.
4. It has complete surge voltage protection function.
5. Works for oil, fuel, diesel, gas, water, air pressure, can be
used in oil tank, gas tank, diesel tank etc.
Applications
● HVAC system
● Water filter
● Air conditioner control equipments
● Frequency water supply
● Water pump
● Building water supply
Description
I2C Pressure sensor .
This I2C pressure sensor is a small general-purpose pressure transmitter
newly developed by our company. It uses internationally advanced
high-stability and high-precision chips, carefully built through
more than a dozen advanced production processes, and undergoes
temperature compensation, error and nonlinear signal adjustments. A
new generation of products that guarantee high precision. This
product adopts I2C bus signal output, has the characteristics of
low power consumption, strong anti-interference, and long
transmission distance. The sensor is small in size, simple to
install, and cost-effective, which greatly enhances the
adaptability of the site.
Speifications
| Measuring Range | -100kPa...0kPa~10kPa...7MPa |
| Compensation Temperature | -10~70℃ |
| Output Signal | IIC |
| Medium Temperature | Customization |
| Ambient Temperature | -40~85℃ |
| Enclosure Protection | IP65 |
| Pressure Type | Gauge pressure; Absolute pressure; Seal pressure |
| Temperature Effect on Zero | ±0.03%FS/℃ |
| Sensitivity Temperature Drift | ±0.03%FS/℃ |
| Overload Pressure | 200%FS |
| Long-term Stability | ≤0.2%FS/℃ |
| Natural Frequency | 5KHz~650KHz |
PS19pressure sensor is widely used in:
Process control system Air compressor Refrigeration system
CNGSNG gas station Natural gas HVAC
Oil pumpdrilling Food industry Chemical industry
Hydraulic control system pump&water system Others
Price, Package, Service
1, Price : EXW, FOB, CFR Xi'an
2, Payment: 100% T/T in advance .
3, Packing : standard export packing , including instructions and
certificate
4, Leading time : 7-10 working days.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
Packing:standard export packing , including instructions and
certificate/ Carton Packing, Water Proof, Shock Resistance
