OEM Pressure Sensor PT2151 Precision Pressure Transducers with Integrated Temperature sensor

Feature

● Accuracy :up to 0.2%RDG and 0.1%F.S

● For precision measurement

● Fully welded structure,no O ring

● Temperature compensated

● 300% overload,no leakage

● Pressure Range :0…2…100bar

● IP67 waterproof grade

Applications

● Gas metering industry
● coal-bed gas measurement
● Oil pressure measurement

● Liquid Level measurement

Description

PT 2151 is special designed for precision pressure measurement in gas metering application. With integrated temperature sensor, PT2151 can provide pressure and temperature test at same time.

The pressure transmitter is fully welded structure which has no Oring in side the sensor, as a result it can safely provide pressure measuring of gas, oil, diesel, and gasoline, coal-bed gas, nature gas, coal gas. with intrinsic safety and explosive-proof futures, so can by applied in harsh industrial environments.

This fully welded structure has perfect sealing performance which against leakage well .

PT2151 designed for accuracy of 0.2%RDG and 0.1%F.S to meet the gas metering application for accurate test and readings. Temperature sensor use PT100 and PT1000 which is suitable for gas metering industry.

So PT 2151 features of high accuracy, long service life , long term stability and easy installation ,get very good feed back from customer.

Speifications

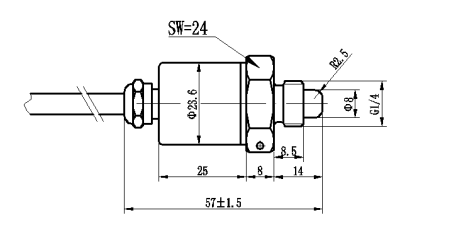

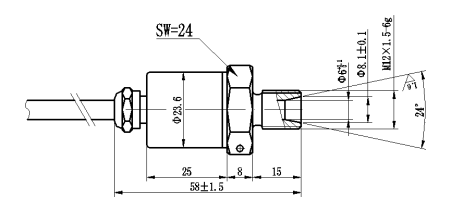

Dimension

M12*1.5 connector

G1/4

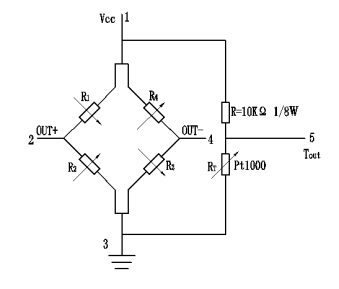

Product schematic diagram

Pressure sensor

pressure sensor+ temperture sensor 5 cables

pressure sensor+ temperture sensor 6 cables with temp.compensation
