High Accuracy Milk Magnetic Flowmeter/Electromagnetic Flow Meter/Milk Flow Meter

    Buy cheap High Accuracy Milk Magnetic Flowmeter/Electromagnetic Flow Meter/Milk Flow Meter from wholesalers

    Buy cheap High Accuracy Milk Magnetic Flowmeter/Electromagnetic Flow Meter/Milk Flow Meter from wholesalers
    • Buy cheap High Accuracy Milk Magnetic Flowmeter/Electromagnetic Flow Meter/Milk Flow Meter from wholesalers

    High Accuracy Milk Magnetic Flowmeter/Electromagnetic Flow Meter/Milk Flow Meter

    Ask Lasest Price
    Brand Name : Atech sensor
    Model Number : PL806
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 pcs month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    High Accuracy Milk Magnetic Flowmeter/Electromagnetic Flow Meter/Milk Flow Meter

    High Accuracy Milk Magnetic Flowmeter/Electromagnetic Flow Meter/Milk Flow Meter

    FL301 intelligent electromagnetic Flowmeter is composed of sensor and converter. It is based on Faraday's law of electromagnetic induction and is used to measure the volume flow rate of conductive liquid with conductivity greater than 5 μS/cm. It is an induction instrument for measuring the volume flow rate of conductive medium.In addition to measuring the volume flow rate of general conductive liquid, it can also be used to measure the volume flow rate of liquid-solid two-phase suspension, such as strong acid and strong alkali, mud, pulp, pulp and so on. Widely used in petroleum, chemical, metallurgy, textile, papermaking, environmental protection, food and other industrial departments and municipal management, water conservancy construction, river dredging and other fields of flowmeasurement.

    Speifications

    Technical Specifications
    Converter
    Compact Type
    IP65
    Remote Type
    IP65(IP68 optional)
    Measurement sensor
    Nominal Diameter
    DN15-DN1000
    Pressure rating
    (High pressure can be customized)
    DN6 - DN80, PN<4.0MPa
    DN100 - DN150, PN<1.6MPa
    DN200 – DN1000, PN<1.0MPa
    DN1200 – DN2000, PN<0.6MPa
    Lining Material
    Chloroprene rubber (CR),
    Polytetrafluoroethylene (PTFE/F4),
    Fluorinated ethylene propylene (FEP/F46),
    Teflon(PFA)
    Electrode Material
    316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
    IP Rate
    IP68
    IP65
    Medium temperature
    -25 – 180℃
    -10 – 80℃
    Serial communications
    RS-485
    Output
    Current (4-20 mA) , pulse , frequency , state switch
    Max measuring error
    Measurement value ±0.5%(Flow speed > 1m/s);
    Measurement value ±0.5% ±2mm/s(Flow speed <1m/s)
    Repetitiveness
    0.15%
    Power supply
    100-240VAC,50/60Hz, 22VDC—26VDC
    Power consumption
    Max 15VA
    Signal cable
    Apply only to remote type
    Shielded cable
    Signal section,wire: 0.5mm2 Cu /AWG20

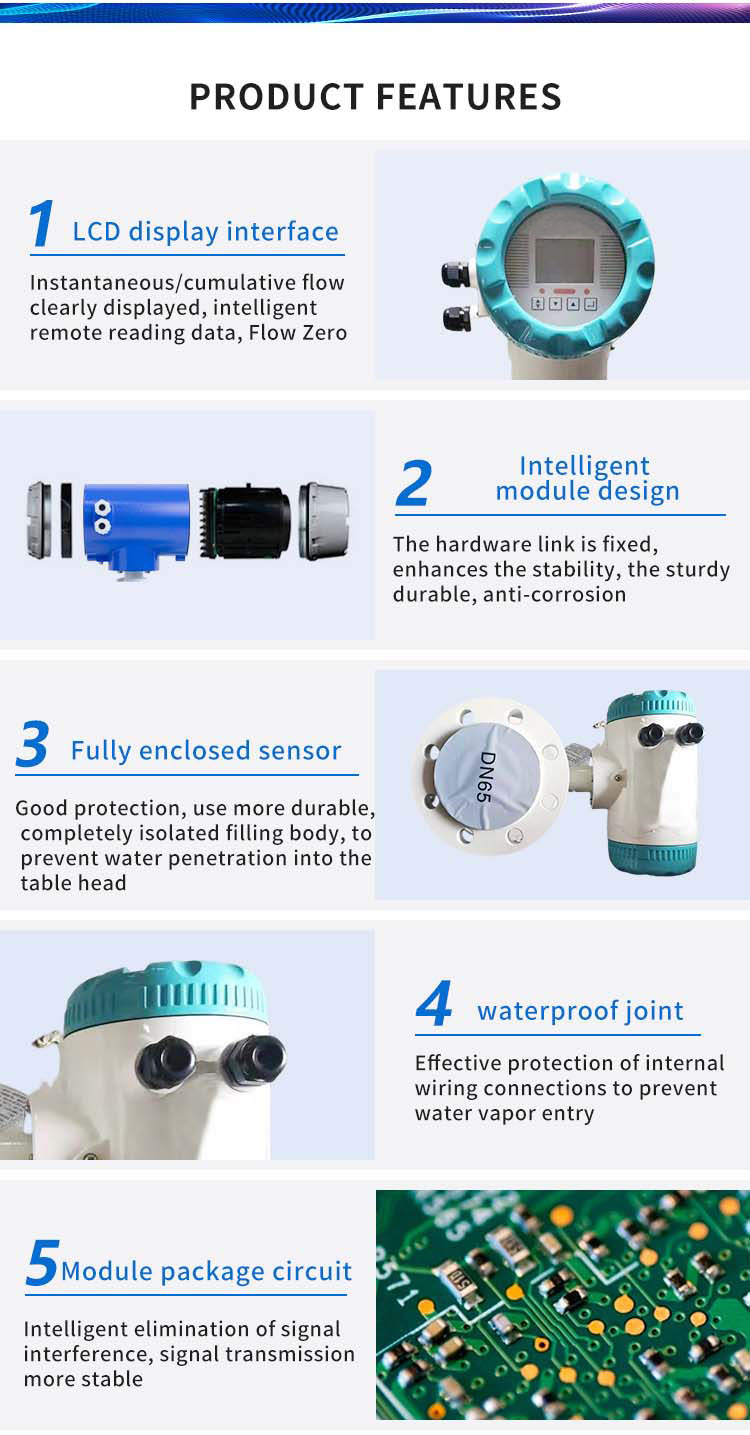

    LCD Display, Clearly Shows the Current Flow and Accumulated Flow,Easy to Operate

    ● Intelligent processing board, fast signal processing and transmission, long-term data storage

    Pure Copper Coil For More Enhanced Magnetic Field to Creat Signal to be detected.

    International Standard Flange. The flange can be made by the standard of ANSI, GB,JIS,EN, DIN etc.

    High Accuracy Milk Magnetic Flowmeter/Electromagnetic Flow Meter/Milk Flow MeterHigh Accuracy Milk Magnetic Flowmeter/Electromagnetic Flow Meter/Milk Flow Meter

    WHY CHOOSE US ??

    We have an independent R&D base and production workshop, using imported R&D experimental equipment, equipped with a professional R&D team, mastering core skills and advanced technologies, first-class equipment and teams enable us to continuously develop excellent products. For 20 years, our company has focused on level measurement. The accumulation of history has enabled us to have a high-precision (±1mm) fully shielded production line, which has laid a solid foundation for the production of high-quality products. For customized instruments, it only takes 3-7 days from receipt of order to delivery. In addition, we are fully dedicated to customized products (OEM). Relying on our rapid research and development capabilities for new products, short delivery time, and high-efficiency service methods, our company occupies 50% of the domestic and foreign sales market share, with a very high market share, and our products are all over the world. We provide high-quality products and professional and perfect after-sales service to customers all over the world at reasonable prices. Customers can contact us at any time after purchasing the product. It is our responsibility to patiently explain the relevant professional knowledge of radar level gauges to customers!
