OEM FL301 Electromagnetic Flow Meter For Conducting Liquid

Ask Lasest Price
Brand Name :	Atech sensor
Model Number :	PL806
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 pcs month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

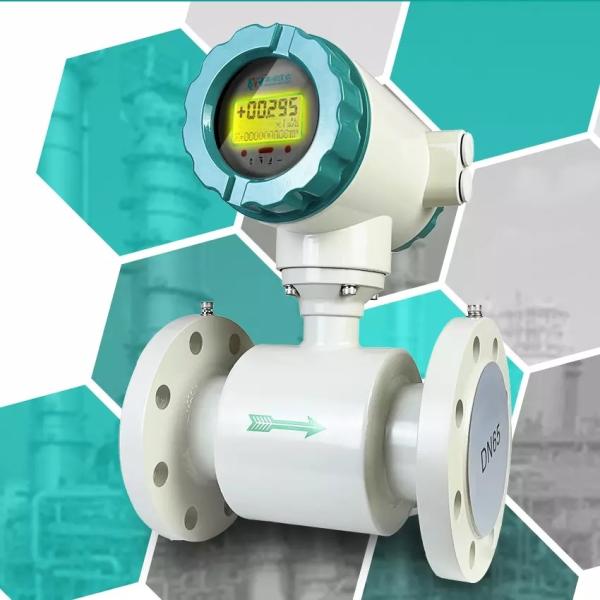

OEM FL301 Electromagnetic Flow Meter For Conducting Liquid

Atech OEM FL301 Magnetic Flow Meter Price For Conducting Liquid

Applications for beverages, chemicals, pharmaceuticals, petroleum, wastewater, water, mining, mineral processing, power, pulp and paper.and chemical industries. Magnetic flowmeters are used in water treatment plants to measure treated and untreated sewage, process water, water and chemicals. Miningand mineral process industry applications include process water and process slurry flows and heavy media flows.

Speifications

Technical Specifications

Converter
Compact Type	IP65
Remote Type	IP65(IP68 optional)
Measurement sensor
Nominal Diameter	DN15-DN1000
Pressure rating (High pressure can be customized)	DN6 - DN80, PN<4.0MPa
	DN100 - DN150, PN<1.6MPa
	DN200 – DN1000, PN<1.0MPa
	DN1200 – DN2000, PN<0.6MPa
Lining Material	Chloroprene rubber (CR), Polytetrafluoroethylene (PTFE/F4), Fluorinated ethylene propylene (FEP/F46), Teflon(PFA)
Electrode Material	316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
IP Rate	IP68	IP65
Medium temperature	-25 – 180℃	-10 – 80℃
Serial communications	RS-485
Output	Current (4-20 mA) , pulse , frequency , state switch
Max measuring error	Measurement value ±0.5%(Flow speed > 1m/s)； Measurement value ±0.5% ±2mm/s(Flow speed <1m/s)
Repetitiveness	0.15%
Power supply	100-240VAC,50/60Hz, 22VDC—26VDC
Power consumption	Max 15VA
Signal cable	Apply only to remote type
Shielded cable	Signal section,wire: 0.5mm2 Cu /AWG20

● The METTLER TOLEDO 0.02% high precision scale is used as the flowmeter calibration instru.ment to ensure the accuracy of the ex factory electromagnetic flowmeter.

● Modular header -Protection, anti-interference upgrade

● Adopt pure copper coilsAccurate and stable signal, far beyond the aluminum wire

OEM FL301 Electromagnetic Flow Meter For Conducting Liquid

WHY CHOOSE US ??

We have an independent R&D base and production workshop, using imported R&D experimental equipment, equipped with a professional R&D team, mastering core skills and advanced technologies, first-class equipment and teams enable us to continuously develop excellent products. For 20 years, our company has focused on level measurement. The accumulation of history has enabled us to have a high-precision (±1mm) fully shielded production line, which has laid a solid foundation for the production of high-quality products. For customized instruments, it only takes 3-7 days from receipt of order to delivery. In addition, we are fully dedicated to customized products (OEM). Relying on our rapid research and development capabilities for new products, short delivery time, and high-efficiency service methods, our company occupies 50% of the domestic and foreign sales market share, with a very high market share, and our products are all over the world. We provide high-quality products and professional and perfect after-sales service to customers all over the world at reasonable prices. Customers can contact us at any time after purchasing the product. It is our responsibility to patiently explain the relevant professional knowledge of radar level gauges to customers!

OEM FL301 Electromagnetic Flow Meter For Conducting Liquid
